MB MSI PRO B650M-B M.ATX DDR5 AMD AM5
MSI
MBMSIPROB650MB
4711377144797
112,01 €
Tasse incluse
- Numero Slot RAM
- 2
- Numero Slot VGA
- 1
- Tipo Socket Memoria
- DDR5
- Tipo Socket CPU
- SOCKET AM5
- Numero Slot M.2
- 1
- Frequenza Supp. Socket Memorie
- DDR5 5600 MHz
DDR5 6000 MHz
DDR5 6400 MHz - Compatibile Case
- FORMATO 4U
FORMATO FULL TOWER
FORMATO MID TOWER
FORMATO MID TOWER COMP RAD360
FORMATO MINI MICRO TOWER
FORMATO XXL E-ATX - Compatibile processore
- AMD
Disponibile

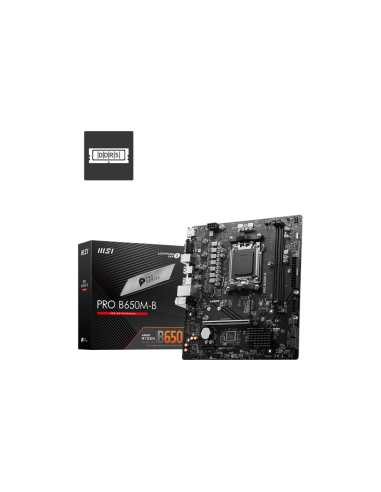

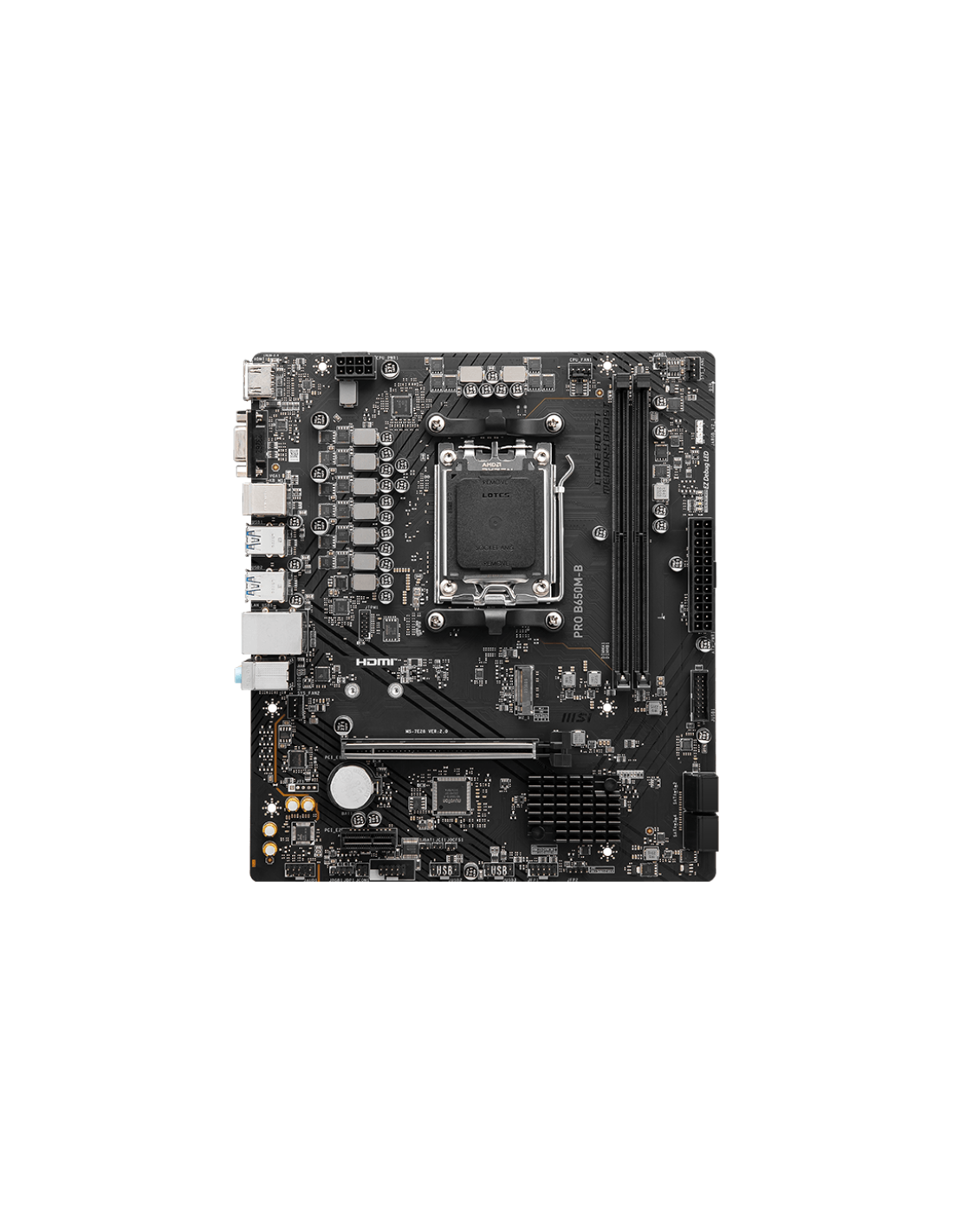

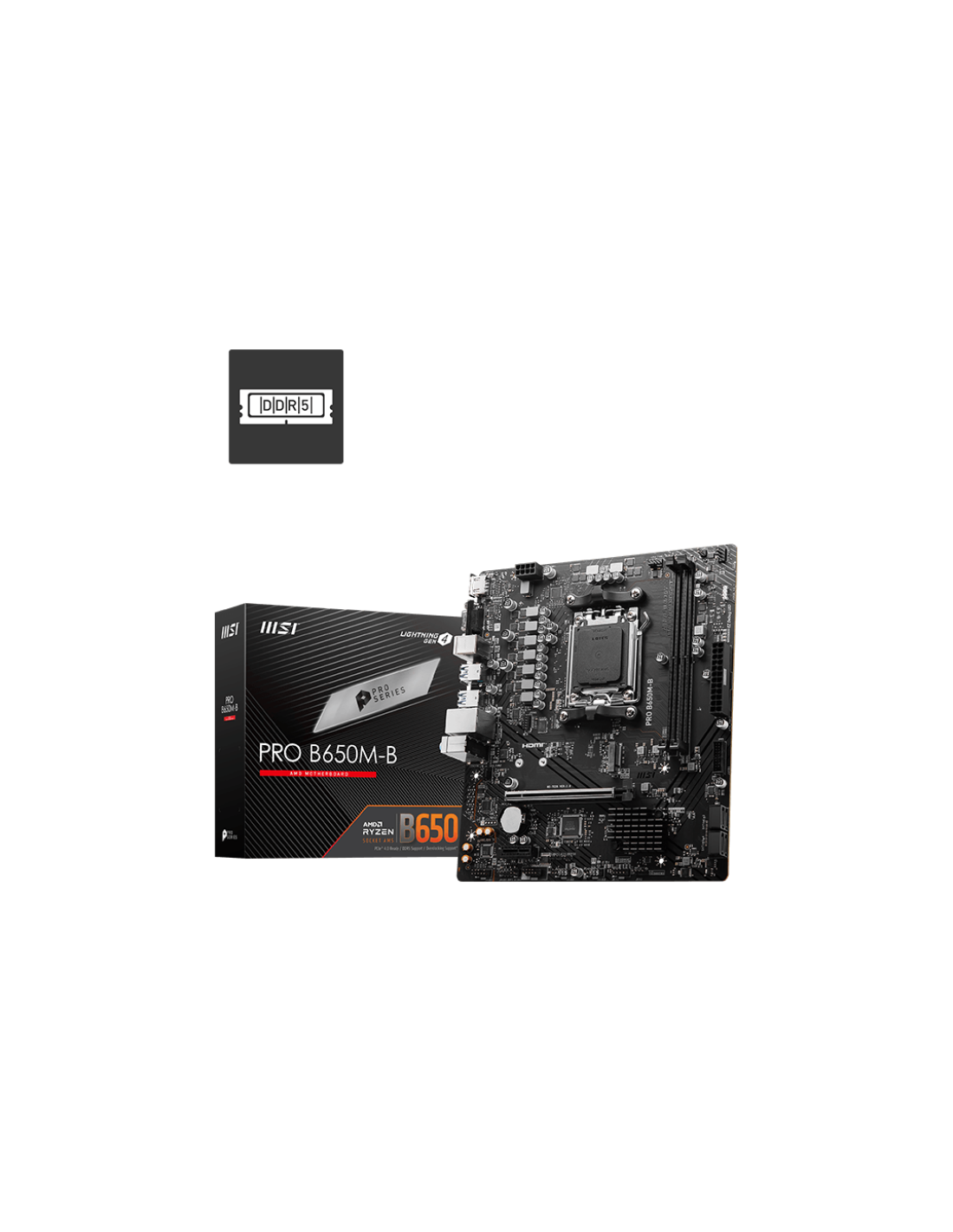

PRO B650M-B
https://it.msi.com/Motherboard/PRO-B650M-B
La serie PRO è pensata per professionisti di ogni settore La gamma offre prestazioni impressionanti e alta qualità, mirando al tempo stesso a fornire agli utenti un'esperienza incredibile. Gli utenti che hanno a cuore la produttività e l'efficienza possono sicuramente contare sulla serie MSI PRO per assistervi nel multitasking e aumentare l'efficienza.
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6800+ MHz | |
| • 1DPC 2R Max speed up to 6000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |

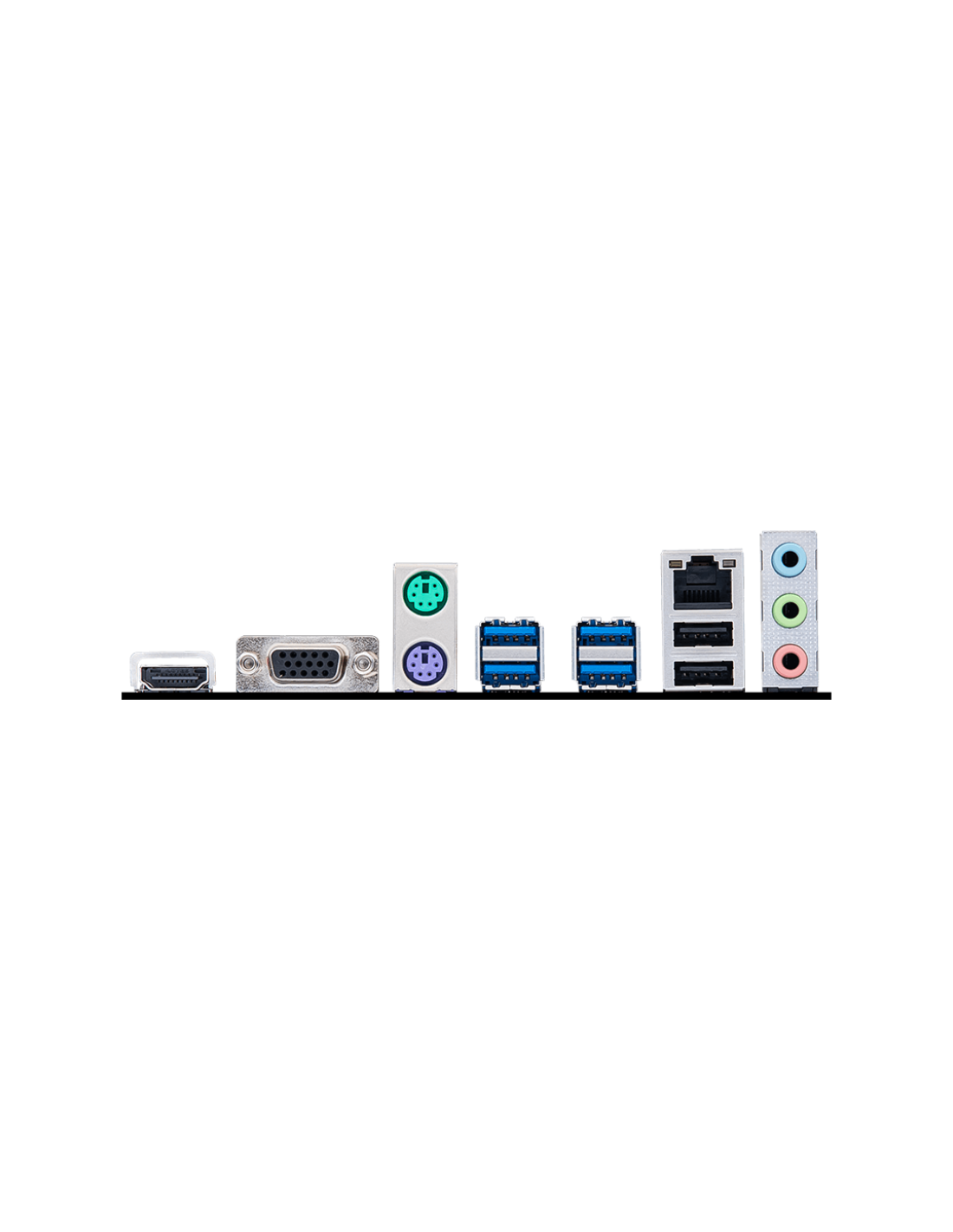

| Onboard Graphics | 1x HDMI™ |
| Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |
| 1x D-Sub | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot (Qty) |
| • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) | |
| 1x PCI-E x1 slot (Qty) | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 1x M.2 (Qty) |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G (Qty) | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| LED FEATURE | 4x EZ Debug LED |
- Numero Slot RAM
- 2
- Numero Slot VGA
- 1
- Tipo Socket Memoria
- DDR5
- Tipo Socket CPU
- SOCKET AM5
- Numero Slot M.2
- 1
- Frequenza Supp. Socket Memorie
- DDR5 5600 MHz
DDR5 6000 MHz
DDR5 6400 MHz - Compatibile Case
- FORMATO 4U
FORMATO FULL TOWER
FORMATO MID TOWER
FORMATO MID TOWER COMP RAD360
FORMATO MINI MICRO TOWER
FORMATO XXL E-ATX - Compatibile processore
- AMD
Disponibile
