MB MSI PRO B850-P WIFI AM5
MB MSI PRO B850-P WIFI AM5
MB MSI PRO B850-P WIFI AM5
MB MSI PRO B850-P WIFI AM5
MB MSI PRO B850-P WIFI AM5
MB MSI PRO B850-P WIFI AM5

MB MSI PRO B850-P WIFI AM5

MSI
MBMSIPROB850PWIFI
4711377286046
211,41 €
Tasse incluse
Numero Slot RAM
4
Numero Slot VGA
3
Tipo Socket Memoria
DDR5
Tipo Socket CPU
SOCKET AM5
Numero Slot M.2
3
Frequenza Supp. Socket Memorie
DDR4 3200 MHz
DDR4 3600 MHz
DDR5 5600 MHz
DDR5 6000 MHz
DDR5 6400 MHz
DDR5 7200 MHz
DDR5 7800 MHz
Compatibile Case
FORMATO 4U
FORMATO FULL TOWER
FORMATO MID TOWER
FORMATO MID TOWER COMP RAD360
FORMATO XXL E-ATX
Compatibile processore
AMD

Disponibile

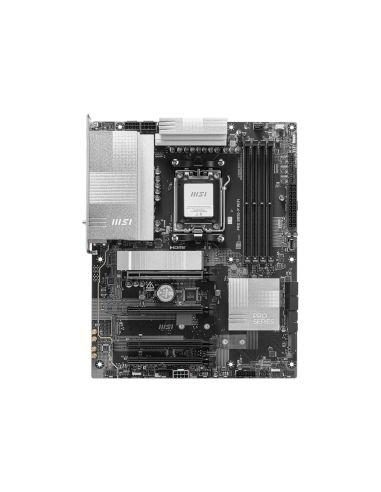

PRO B850-P WIFI

PRO B850-P WIFI offre un design semplice con un'armoniosa combinazione di colori argento che si abbina perfettamente ai PC bianchi e neri. È progettato con molte caratteristiche esclusive di MSI, un vero Wi-Fi 7 con EZ Antenna, LAN 5G, PCIe 5.0 M.2 con EZ M.2 Shield Frozr II e Supplemental PCIe Power, pronto per i processori AMD Ryzen™ serie 9000.

https://www.msi.com/Motherboard/PRO-B850-P-WIFI

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

* PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Audio Realtek® ALC897
7.1-Channel High Definition Audio
Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

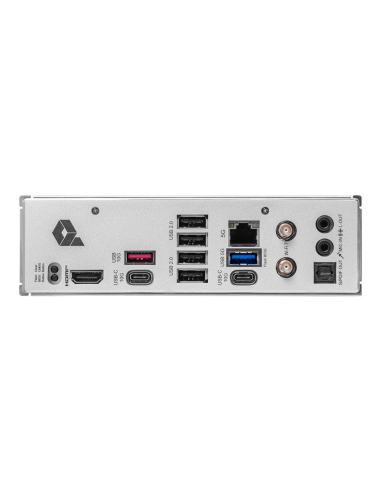

USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
LAN Realtek® 8126VB 5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
Numero Slot RAM
4
Numero Slot VGA
3
Tipo Socket Memoria
DDR5
Tipo Socket CPU
SOCKET AM5
Numero Slot M.2
3
Frequenza Supp. Socket Memorie
DDR4 3200 MHz
DDR4 3600 MHz
DDR5 5600 MHz
DDR5 6000 MHz
DDR5 6400 MHz
DDR5 7200 MHz
DDR5 7800 MHz
Compatibile Case
FORMATO 4U
FORMATO FULL TOWER
FORMATO MID TOWER
FORMATO MID TOWER COMP RAD360
FORMATO XXL E-ATX
Compatibile processore
AMD

Disponibile
