MB MSI B840 GAMING PLUS WIFI AM5
MSI
MBMSIB840GAMPLWIFI
4711377286589
175,49 €
Tasse incluse
- Numero Slot RAM
- 4
- Numero Slot VGA
- 3
- Tipo Socket Memoria
- DDR5
- Tipo Socket CPU
- SOCKET AM5
- Numero Slot M.2
- 2
- Frequenza Supp. Socket Memorie
- DDR5 5600 MHz
DDR5 6000 MHz
DDR5 6400 MHz
DDR5 7200 MHz - Compatibile Case
- FORMATO 4U
FORMATO FULL TOWER
FORMATO MID TOWER
FORMATO MID TOWER COMP RAD360
FORMATO XXL E-ATX - Compatibile processore
- AMD
Disponibile

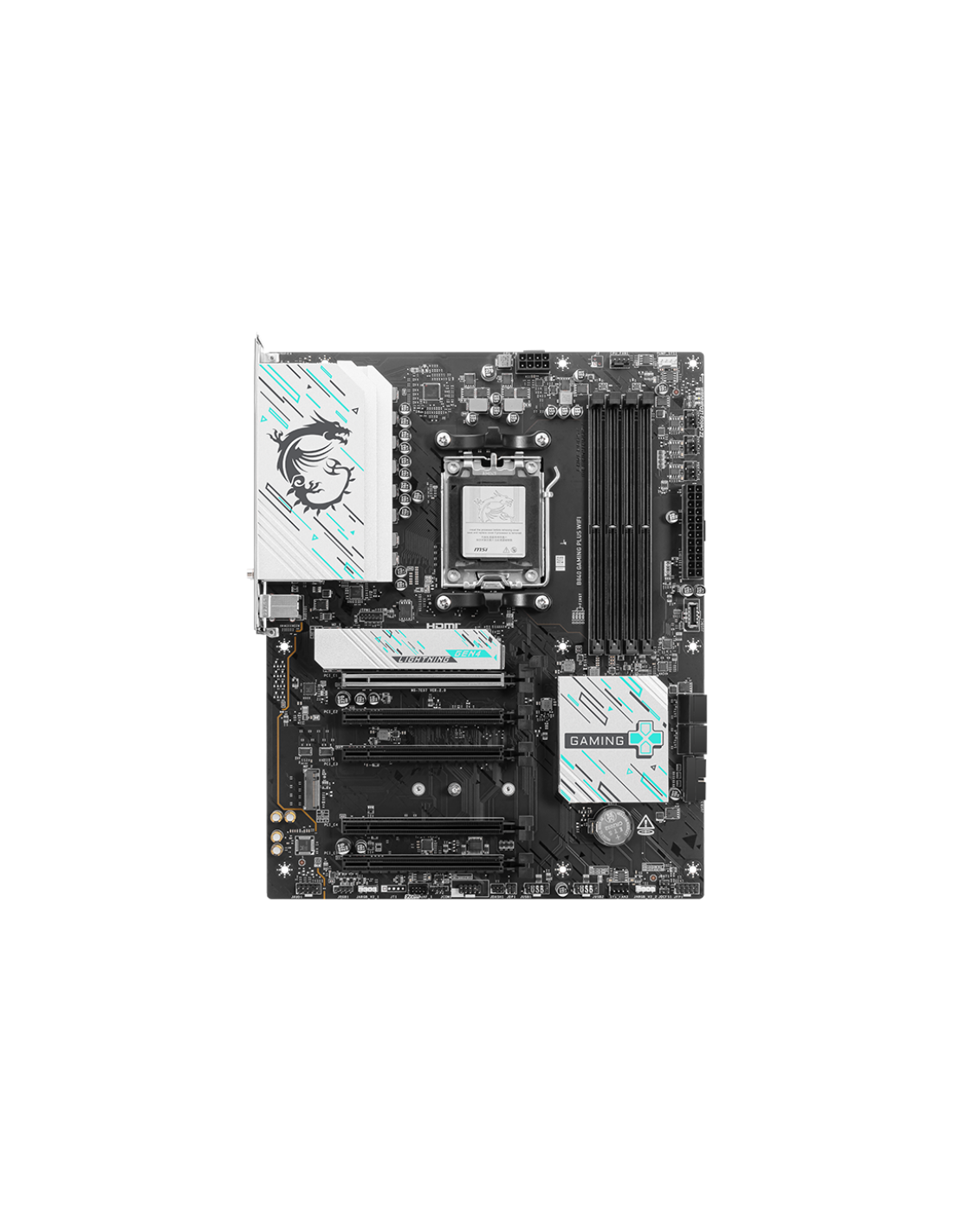

B840 GAMING PLUS WIFI
Il B840 GAMING PLUS WIFI è stato progettato per offrire un'ampia connettività, strumenti versatili e una soluzione Wi-Fi di qualità superiore per i giocatori che desiderano un'esperienza completa. Dotato di Wi-Fi 7 a piena velocità, LAN 2,5G, soluzione PCIe 4.0 ed esclusive funzioni EZ DIY, è pronto per il gioco 24/7 non-stop ottimizzato per i processori AMD Ryzen™ serie 9000.
https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI
Specifiche
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
| Ryzen™ 9000 Series Processors max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 8000+ MT/s | |
| • 1DPC 2R Max speed up to 6400+ MT/s | |
| • 2DPC 1R Max speed up to 6400+ MT/s | |
| • 2DPC 2R Max speed up to 4800+ MT/s | |
| Supports AMD POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 5x PCI-E x16 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
| PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | |
| * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. | |
| Audio | Realtek® ALC897 |
| 7.1-Channel High Definition Audio | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices | |
| 4x SATA 6G | |
| M2_2 slot | |
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor) | |
| *Please refer to the manual for M.2 SSD heatsink restrictions. | |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

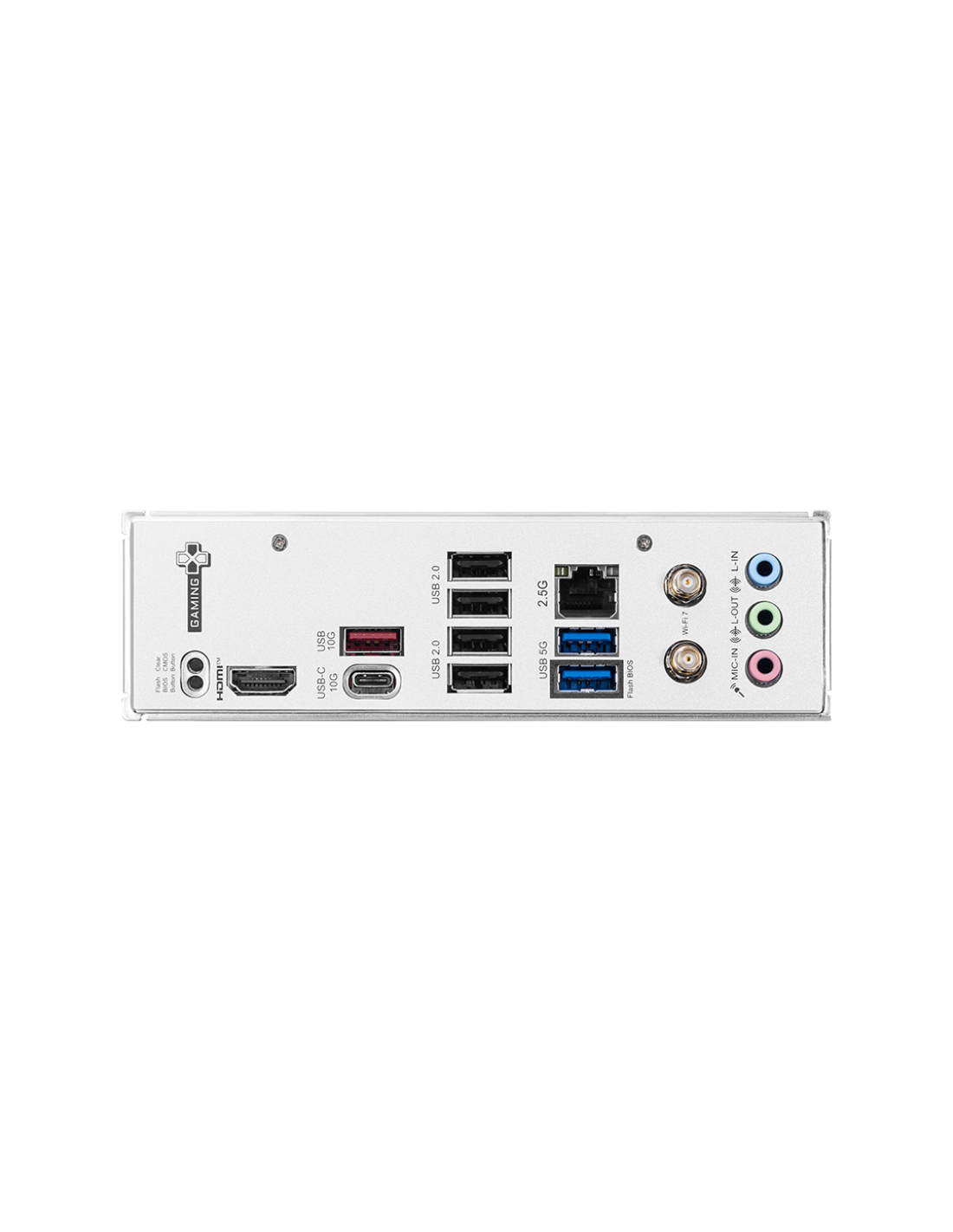

| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 1x USB 5Gbps Type C (Front) | |
| 1x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| LAN | Realtek® 8125BG 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 4x System Fan | |
| 1x EZ Conn-header (JAF_1) | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) |
