MB MSI PRO B840M-P MATX WIFI6E AM5
MSI
MBMSIPROB840MPWIFI6E
4711377361804
148,07 €
Tasse incluse
- Numero Slot RAM
- 4
- Numero Slot VGA
- 3
- Tipo Socket Memoria
- DDR5
- Tipo Socket CPU
- SOCKET AM5
- Numero Slot M.2
- 2
- Frequenza Supp. Socket Memorie
- DDR5 5600 MHz
DDR5 6000 MHz
DDR5 6400 MHz
DDR5 7200 MHz - Compatibile Case
- FORMATO 4U
FORMATO FULL TOWER
FORMATO MID TOWER
FORMATO MID TOWER COMP RAD360
FORMATO XXL E-ATX - Compatibile processore
- AMD
Disponibile

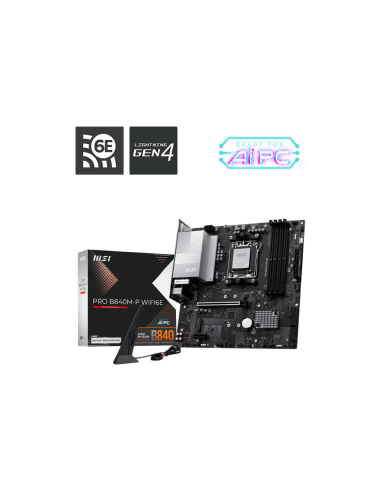

PRO B840M-P WIFI6E
PRO B840M-P WIFI6E offre un design semplice con un'armoniosa combinazione di colori argento che si abbina perfettamente ai PC bianchi e neri. È dotato di molte caratteristiche esclusive di MSI, un Wi-Fi 6E con antenna EZ, LAN 2,5G e PCIe 4.0 M.2, pronto per i processori AMD Ryzen™ serie 9000.
https://www.msi.com/Motherboard/PRO-B840M-P-WIFI6E
Specifiche
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
| Ryzen™ 9000 Series Processors max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 8000+ MT/s | |
| • 1DPC 2R Max speed up to 6400+ MT/s | |
| • 2DPC 1R Max speed up to 6400+ MT/s | |
| • 2DPC 2R Max speed up to 5600+ MT/s | |
| Supports AMD POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| • The DIMM slots on this motherboard only have single-sided latches. | |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) | |
| Audio | Realtek® ALC897 |
| 7.1-Channel High Definition Audio | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| M2_2 slot | |
| • Supports up to PCIe 4.0 x4 | |
| • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) | |
| *Please refer to the manual for M.2 SSD heatsink restrictions. | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 1x USB 5Gbps Type C (Front) | |
| 1x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 5Gbps Type C ports | |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3**, FIPS, FISMA | |
| * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E will be ready in Windows 11 version 24H2. | |
| ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. | |
| LED FEATURE | 4x EZ Debug LED |
| 1x EZ Memory Detection LED |
